PRODUCT
PRODUCT
LED Module
Flicker Free Module

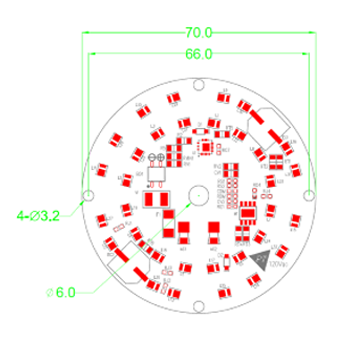

Part No. PT070XXXUD0P012X

Dimension (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
70
1,320
12.0
120
Percent
Flicker
Pst
SVM
Option
3%↓
0.1↓
0.1↓
▶ 0-10V Dim
▶ PWM DIm　
▶ P.C.C
▶ Change Color
    (3 or 5 Color)

Part No. PT070XXXED0P012X

Dimension (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
70
1,320
12.0
230
Percent
Flicker
Pst
SVM
Option
3%↓
0.1↓
0.1↓
▶ 0-10V Dim
▶ PWM DIm　
▶ P.C.C
▶ Change Color
    (3 or 5 Color)

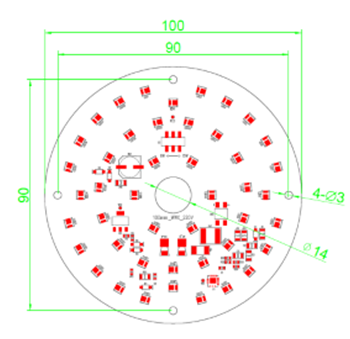

Part No. PT100XXXUD0P015A

Dimension (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
100
1,000/
1,800
8.0/
15.0
120
Percent
Flicker
Pst
SVM
Option
3%↓
0.1↓
0.1↓
▶ 0-10V Dim
▶ PWM DIm　
▶ P.C.C
▶ Change Color
    (3 or 5 Color)

Part No. PT100XXXED0P015A

Dimension (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
100
1,000/
1,800
8.0/
15.0
230
Percent
Flicker
Pst
SVM
Option
3%↓
0.1↓
0.1↓
▶ 0-10V Dim
▶ PWM DIm　
▶ P.C.C
▶ Change Color
    (3 or 5 Color)

※ P.C.C - Power Consumption Change

※ The standard for flux is 80CRI 4000k

※ Custom made available.

Flicker Free Module

Part No. PT150XXXXD0P015E

Dimension (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
Ø150
1,650
15.0
120 & 220 & 230
Percent
Flicker
Pst
SVM
Option
3%↓
0.1↓
0.1↓
▶ 0-10V Dim
▶ PWM DIm　
▶ P.C.C
▶ Change Color
    (3 or 5 Color)

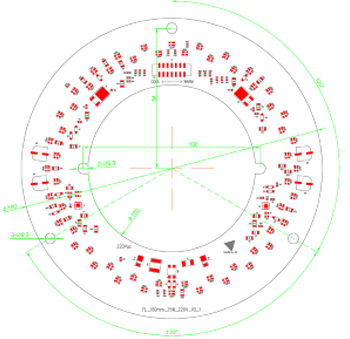

Part No. PT180XXXXD0P020E

Dimension (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
Ø180
2,220
20.0
120 & 220 & 230
Percent
Flicker
Pst
SVM
Option
3%↓
0.1↓
0.1↓
▶ 0-10V Dim
▶ PWM DIm　
▶ P.C.C
▶ Change Color
    (3 or 5 Color)

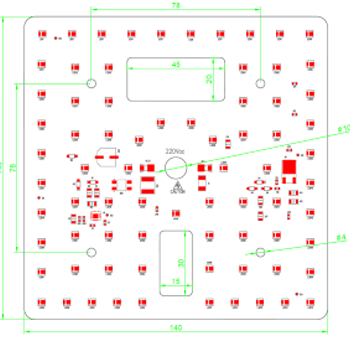

Part No. PT140140KD0P015X

Dimension (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
140X140
1,850
15.0
220
Percent
Flicker
Pst
SVM
Option
3%↓
0.1↓
0.1↓
▶ 0-10V Dim
▶ PWM DIm　
▶ P.C.C
▶ Change Color
    (3 or 5 Color)

※ P.C.C - Power Consumption Change

※ The standard for flux is 80CRI 4000k

※ Custom made available.

Dimmable Module

Part No. PT070XXXUB0P015X

Dimension (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
70
1,800
15.0
120
Percent
Flicker
Pst
SVM
Option
20%↓
0.1↓
0.1↓
▶ 0-10V Dim
▶ PWM DIm　
▶ P.C.C
▶ Change Color
    (3 or 5 Color)

Part No. PT070XXXKD0P015X

Dimension (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
70
1,800
15.0
220 & 230
Percent
Flicker
Pst
SVM
Option
20%↓
0.1↓
0.1↓
▶ 0-10V Dim
▶ PWM DIm　
▶ P.C.C
▶ Change Color
    (3 or 5 Color)

Part No. PT100XXXUB0P015X

Dimension (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
100
1,800
15.0
120
Percent
Flicker
Pst
SVM
Option
20%↓
0.1↓
0.1↓
▶ 0-10V Dim
▶ PWM DIm　
▶ P.C.C
▶ Change Color
    (3 or 5 Color)

Part No. PT100XXXKD0P015X

Dimension (mm)
Flux
(lm)
Power
(W)
Vin (Vac)
100
1,800
15.0
220 & 230
Percent
Flicker
Pst
SVM
Option
20%↓
0.1↓
0.1↓
▶ 0-10V Dim
▶ PWM DIm　
▶ P.C.C
▶ Change Color
    (3 or 5 Color)

※ P.C.C - Power Consumption Change

※ The standard for flux is 80CRI 3000k

※ Custom made available.

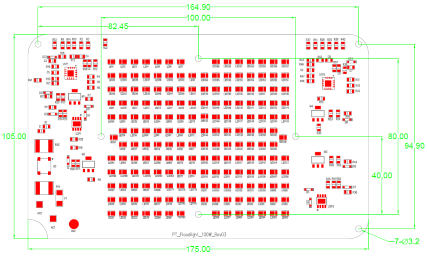

Flood Light

Part No. PT175105KD0P100X

Dimension
(mm)
Flux
(lm)
Power
(W)
175 x 105
15,000
100
Vin (Vac)
Option
120 & 230
   ▶ 0-10V Dim
   ▶ PWM DIm

Part No. PT140085KD0P100X

Dimension
(mm)
Flux
(lm)
Power
(W)
140 x 85
7,500
50
Vin (Vac)
Option
220 & 230
   ▶ 0-10V Dim
   ▶ PWM DIm　

Part No. PT120075KD0P100X

Dimension
(mm)
Flux
(lm)
Power
(W)
120 x 75
4,500
30
Vin (Vac)
Option
220 & 230
   ▶ 0-10V Dim
   ▶ PWM DIm　

※ The standard for flux is 80CRI 5000k

※ Custom made available.

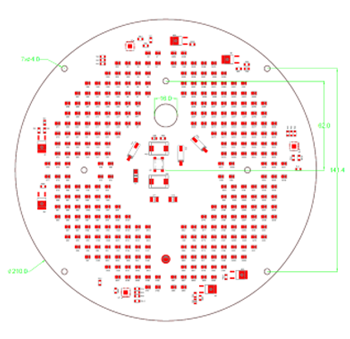

High-Bay

Part No. PT180XXXKD0P100X

Dimension
(mm)
Flux
(lm)
Power
(W)
180
15,000
100
Vin (Vac)
Option
120 & 230
   ▶ 0-10V Dim
   ▶ PWM DIm

Part No. PT210XXXKD0P150X

Dimension
(mm)
Flux
(lm)
Power
(W)
210
22,500
150
Vin (Vac)
Option
220 & 230
   ▶ 0-10V Dim
   ▶ PWM DIm　

Part No. PT220XXXKD0P200X

Dimension
(mm)
Flux
(lm)
Power
(W)
220
30,000
200
Vin (Vac)
Option
220 & 230
   ▶ 0-10V Dim
   ▶ PWM DIm　

Part No. PT264XXXKD0P300X

Dimension
(mm)
Flux
(lm)
Power
(W)
264
45,000
300
Vin (Vac)
Option
220 & 230
   ▶ 0-10V Dim
   ▶ PWM DIm　

※ P.C.C - Power Consumption Change

※ The standard for flux is 80CRI 5000k

※ Custom made available.

Linear Flicker Free Series

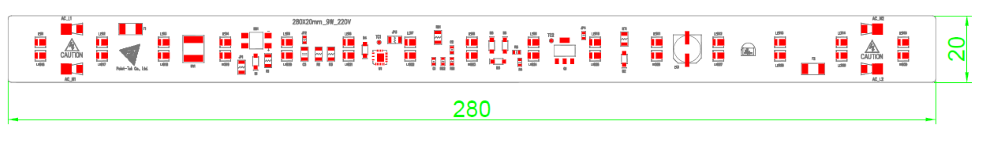

Part No. PT280020XD0P004X

Dimension (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
280 X 20
515
4.5
120 & 220 & 230
Percent
Flicker
Pst
SVM
Option
3%↓
0.1↓
0.1↓
▶ 0-10V Dim
▶ PWM DIm　
▶ P.C.C
▶ Change Color
    (3 or 5 Color)

Part No. PT280020XD0P009X

Dimension (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
280 X 20
1,000
9.0
120 & 220 & 230
Percent
Flicker
Pst
SVM
Option
3%↓
0.1↓
0.1↓
▶ 0-10V Dim
▶ PWM DIm　
▶ P.C.C
▶ Change Color
    (3 or 5 Color)

Part No. PT560020XD0P009X

Dimension (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
560 X 20
1,000
9.0
120 & 220 & 230
Percent
Flicker
Pst
SVM
Option
3%↓
0.1↓
0.1↓
▶ 0-10V Dim
▶ PWM DIm　
▶ P.C.C
▶ Change Color
    (3 or 5 Color)

Part No. PT560020XD0P018X

Dimension (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
560 X 20
2,050
18.0
120 & 220 & 230
Percent
Flicker
Pst
SVM
Option
3%↓
0.1↓
0.1↓
▶ 0-10V Dim
▶ PWM DIm　
▶ P.C.C
▶ Change Color
    (3 or 5 Color)

※ P.C.C - Power Consumption Change

※ The standard for flux is 80CRI 3000k

※ Custom made available.

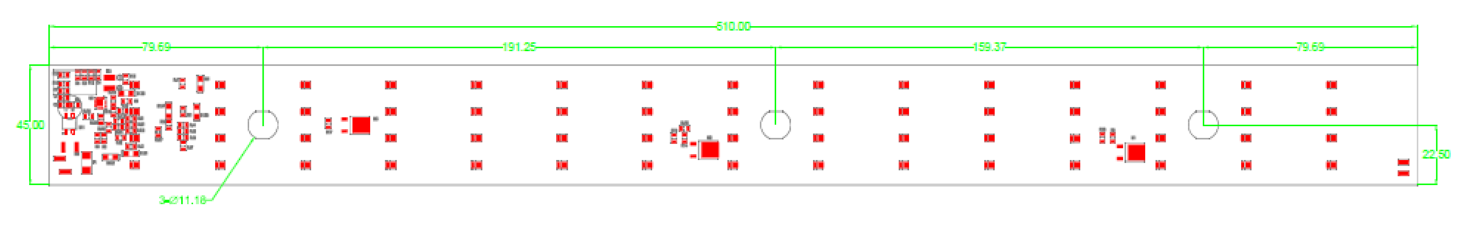

LED Forming Lamp

※ Composition = Cover + Module + Neodymium Magnet

Part No. PT510045KD0P024E

Dimension (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
510 x 45
3,000
24
220
Percent
Flicker
Pst
SVM
Option
25%↓
0.1↓
0.1↓

※ The standard for flux is 80CRI 4000k

LED Module
Flicker Free Module
Part No.
Dimension
 (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
Percent
Flicker
Pst
SVM
Option
PT070XXXUD0P012X
70
1,320
12.0
120
3%↓
0.1↓
0.1↓

▶ 0-10V Dim

▶ PWM DIm　

▶ P.C.C

▶ Change Color

    (3 or 5 Color)
PT070XXXED0P012X
70
1,320
12.0
230
3%↓
0.1↓
0.1↓
PT100XXXUD0P015A
100
1,000 / 1,800
8.0 / 15.0
120
3%↓
0.1↓
0.1↓
PT100XXXED0P015A
100
1,000 / 1,800
8.0 / 15.0
230
3%↓
0.1↓
0.1↓

※ P.C.C - Power Consumption Change

※ The standard for flux is 80CRI 4000k

※ Custom made available.

Flush Mount Ceiling Light
Part No.
Dimension
 (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
Percent
Flicker
Pst
SVM
Option
PT150XXXXD0P015E
Ø150
1,650
15.0
120 & 220
& 230
3%↓
0.1↓
0.1↓

▶ 0-10V Dim

▶ PWM DIm　

▶ P.C.C

▶ Change Color

    (3 or 5 Color)
PT180XXXXD0P020E
Ø180
2,200
20.0
120 & 220
& 230
3%↓
0.1↓
0.1↓
PT140140KD0P015X
140X140
1,850
15.0
220
3%↓
0.1↓
0.1↓

※ P.C.C - Power Consumption Change

※ The standard for flux is 80CRI 4000k

※ Custom made available.

Dimmable Module
Part No.
Dimension
 (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
Percent
Flicker
Pst
SVM
Option
PT070XXXUB0P015X
70
1,800
15.0
120
20%↓
1.0↓
1.0↓

▶ 0-10V Dim

▶ PWM DIm　

▶ P.C.C

▶ Change Color

    (3 or 5 Color)
PT070XXXKD0P015X
70
1,800
15.0
220 & 230
20%↓
1.0↓
1.0↓
PT100XXXUB0P015X
100
1,800
15.0
120
20%↓
1.0↓
1.0↓
PT100XXXKD0P015X
100
1,800
15.0
220 & 230
20%↓
1.0↓
1.0↓

※ P.C.C - Power Consumption Change

※ The standard for flux is 80CRI 3000k

※ Custom made available.

Flood Light
Part No.
Dimension
 (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
Option
PT175105KD0P100X
175 x 105
15,000
100
120 & 230

▶ 0-10V Dim

▶ PWM DIm　

PT140085KD0P100X
140 x 85
7,500
50
220 & 230
PT120075KD0P100X
120 x 75
4,500
30
220 & 230

※ The standard for flux is 80CRI 5000k

※ Custom made available.

High-Bay
Part No.
Dimension
 (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
Option
PT180XXXKD0P100X
180
15,000
100
220 & 230

▶ 0-10V Dim

▶ PWM DIm

PT210XXXKD0P150X
210
22,500
150
220 & 230
PT220XXXKD0P200X
220
30,000
200
220 & 230
PT264XXXKD0P300X
264
45,000
300
220 & 230

※ P.C.C - Power Consumption Change

※ The standard for flux is 80CRI 5000k

※ Custom made available.

Linear Flicker Free Series
Part No.
Dimension
 (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
Percent
Flicker
Pst
SVM
Option
PT280020XD0P004X
280 X 20
515
4.5
120 & 220
& 230
3%↓
0.1↓
0.1↓

▶ 0-10V Dim

▶ PWM DIm　

▶ P.C.C

▶ Change Color

    (3 or 5 Color)
PT280020XD0P009X
280 X 20
1,000
9.0
120 & 220
& 230
3%↓
0.1↓
0.1↓
PT560020XD0P009X
560 X 20
1,000
9.0
120 & 220
& 230
3%↓
0.1↓
0.1↓
PT560020XD0P018X
560 X 20
2,050
18.0
120 & 220
& 230
3%↓
0.1↓
0.1↓

※ P.C.C - Power Consumption Change

※ The standard for flux is 80CRI 3000k

※ Custom made available.

LED Forming Lamp

※ Composition = Cover + Module + Neodymium Magnet

Part No.
Dimension
 (mm)
Flux
(lm)
Power
(W)
Vin
(Vac)
Percent
Flicker
Pst
SVM
Option
PT510045KD0P024E
510 x 45
3,000
24
220
25%↓
0.1↓
0.1↓



※ The standard for flux is 80CRI 4000k
